Product Description

Electrical Heating Conduction Oil Furnace  adopts a digital display temperature controller, and has functions of over temperature alarm, low oil level alarm and over pressure alarm. This product is a type of high-efficiency energy-saving heating equipment for chemical, petroleum, machinery, printing and dyeing, foodstuff, marine, textile, and film industry,etc.

Product Advantages

Electrical Heating Conduction Oil Furnace   is a special type industrial furnace, characterized by safety, high efficiency, saving energy, low pressure and functions of supplying high temperature heat energy. The electric oil heating furnace is a special type straight flow industrial furnace, which adopts electricity as the heat source, and uses the heat transfer oil as the heat carrier.

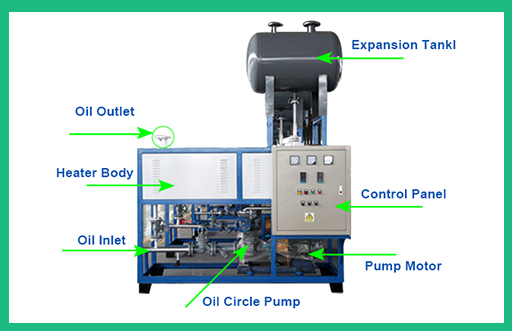

Electrical heat-conducting oil furnace system is composed of an explosion-proof electric heater, an organic heat carrier furnace, a heat exchanger (configurable), a control cabinet, a hot oil pump, and an expansion slot. The user only needs to connect the equipment to a power supply, and arrange medium inlet and outlet pipes and electrical interfaces before use. electrical heat conduction oil furnace (also known as oil transfer heater), the electric heater is directly inserted into the organic carrier (heat transfer oil) for direct heating.

Model Number:    WDR Series

Output:    electrical

Dimension(L*W*H):    As Model

Weight:    As Model

Certification:    ISO

Media:    Organic Heat Transfer Material

Heat Carrier:    Conduction Oil/Thermal Oil

Heat Efficiency:    >90%

Highest Operation Temperature:    300

Structure:    Oil Tube

Pressure:    Low Pressure

Style:    Vertical

Fuel:    Electric

Product name:    Thermal Oil Furnace

Output:    Hot Oil

Dimension(L*W*H):    designed as customer's request

Material:    SS304

Shap:    Cabinet type

Warranty:    12 month

Voltage:    380V/415V/440V/450V

Power(W):    400 KW

Product Type:    Heat Conduction oil furnace

Structure:    electrical

Pressure:    Low Pressure

Style:    Vertical

Fuel:    Oil based,Coal Based, etc

Place of Origin:    Shandong, China (Mainland)



The main frame is made of steel, bear strong weight;
The heat preservation device is perfect and thermal efficiency is improved;
Oil return temperature can be displayed;
Switching function of heating power and it can be customized;
The temperature can be adjusted freely at RT- 300 °C;
Automatic exhaust when starting up;
Delay cooling when shutting down,and it can be customized;
Multipoint temperature control and it can be customized;
Pressure detection and alarm;
Temperature detection and alarm;
Our heater are with explosion-proof, they can be OEM.



(1) heater start and stop control
(2) signal display of heater start and stop
(3) display and control of outlet temperature
(4) three phase current and voltage display
(5) system power indication and fault alarm indication
(6) fault interlock and electric automatic protection



1. Our electric heat conduction oil furnace is equipped with a perfect operating control and safety monitoring device, so it can realize Automation Control

2. It can reach a higher operating temperature under lower operating  pressure

3. High Thermal efficiency, can reach to higher than 95%,the control precision can be +/-1 °c

4. The equipment is of small volume, flexibly to install, adapt to install nearby the heat using equipment



Specification Table
