Product Description

1.  Mixing and heating uniformly to prove product quality.

2.  Operating conveniently saving working time.

3.  By dynamic balance testing to improve working safety.

4.  No nosy to improve working environment.

5.  Materials are all sanitary stainless steel.

6.  Humanized structure design and easy to operate.

7.  Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.



Product Feature

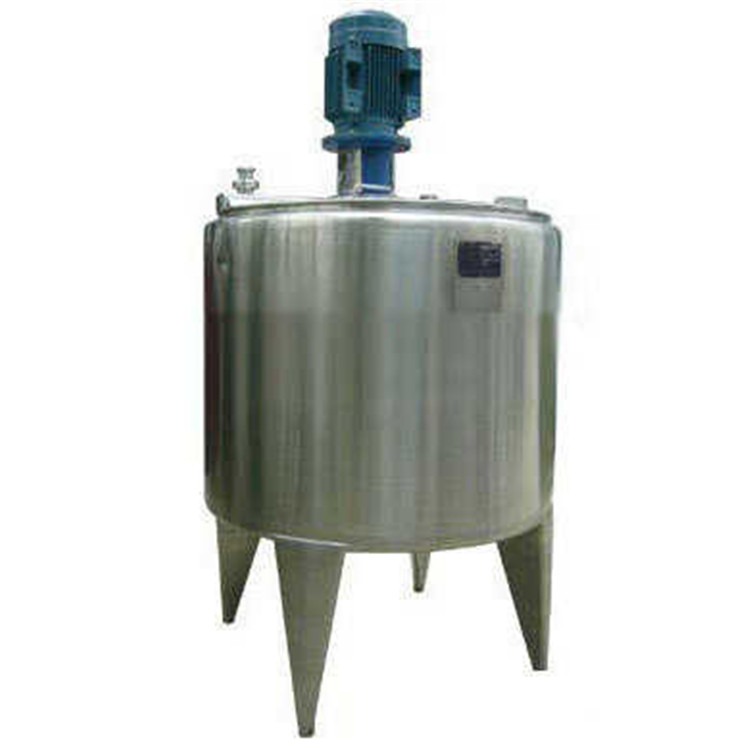

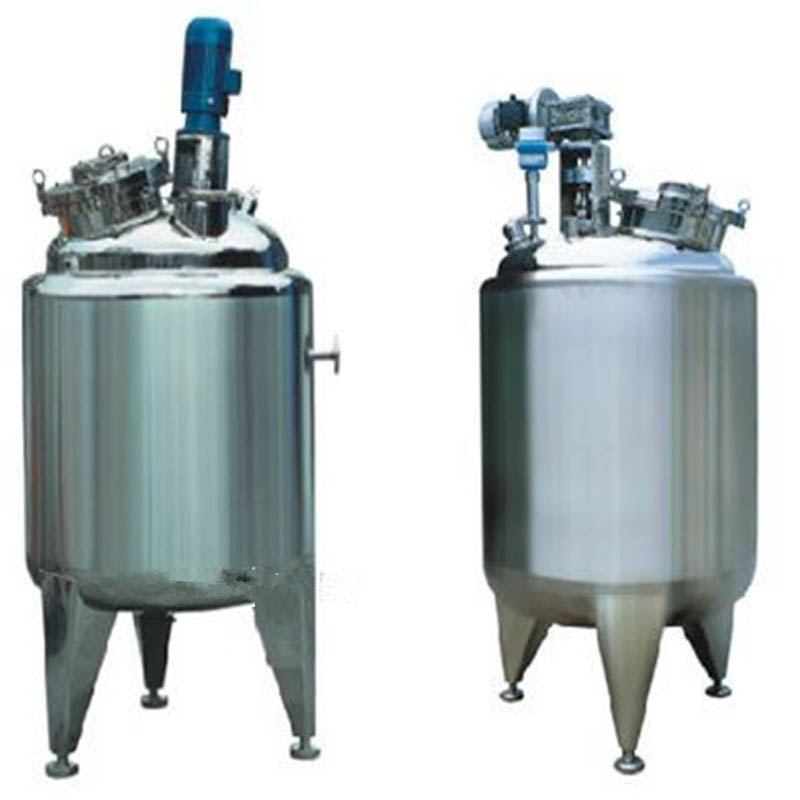

Electric mixing and heating tank is consisted of tank body, mixing part, heating part and electric control panel. The tank made up of stainless steel with jacket for heating or cooling and insulating layer for outer. There are many options for choosing the type of Jacketed heating,  such as electric heating steam heating, oil heating.

According to technological requirements, the mixing part can choose high shear, high speed dispersion or low speed  or mixing,paddle mixing, propeller mixing and so on.

Reactor is typically used to install floor mounted legs,also can use lug  support on  the platform.



1.Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.



2.Electric mixing and heating tank used in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.



Configuration of tank

  1. Electrical motor, reducer, control panel.
  2. Feed inlet, outlet, equipped port.
  3. Quick open manhole.
  4. Paddle blender.
  5. Dismounted materials input pipe assembly.
  6. Various types of CIP cleaners (According to customer requirements ).
  7. Thermometer (According to customer requirements ).
  8. Ladder (According to customer requirements).
  9. Liquid level meter and lever controller (According to customer requirements).
  10. Eddy-proof board.
  11. Customized and Non-standard products also welcomed.



Model

Power(kw)

Volume(L)

Speed(r/min)

DP-20

0.2kw

50-200L

36-1400

0.4kw

50-200L

DP-40

0.55kw

200-500L

0.75kw

200-500L

DP-60

1.1kw

500-1000L

1.5kw

500-1000L

DP-80

1.5kw

800-2000L

2.2kw

800-2000L

DP-100

3kw

1500-3000L

4kw

1500-3000L

DP-120

4kw

2000-5000L

5.5kw

2000-5000L

DP-140

7.5kw

3000-10000L



Specification Table
